Substation Control and Protection Solution
Update time：2020-06-02
Information
Substation Control and Protection Solution
Application

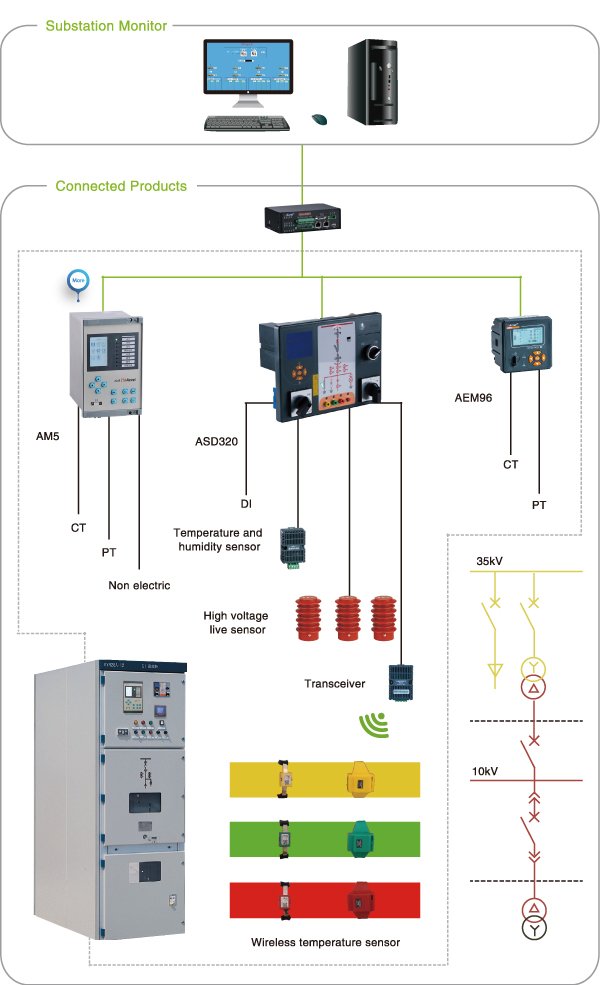

Structure
Main Functions

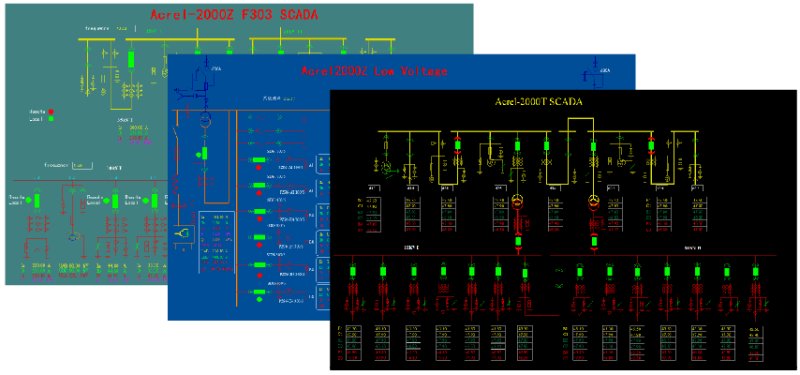

Remote Measuring,Signal & Control

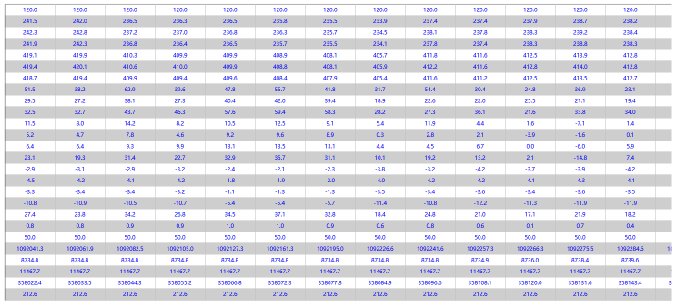

Report

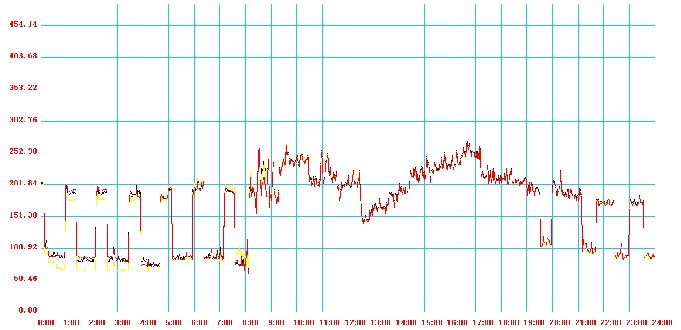

Curve

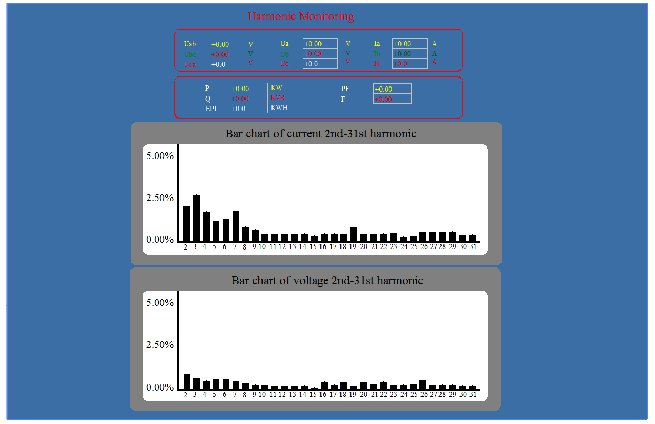

Harmonic Monitoring

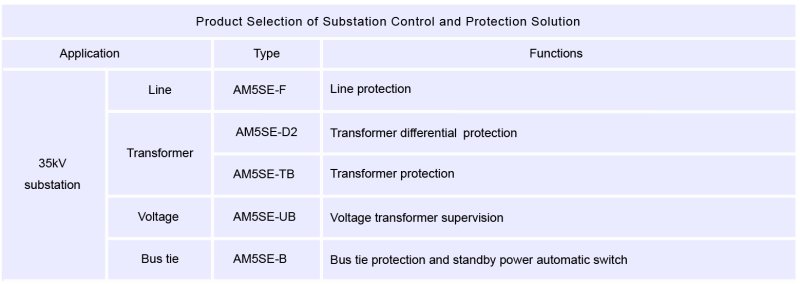

Product Selection
Related Suggestion
48*48m Panel Single phase AC Digital Ammeter AMC48-AI● Measurement: Single phase AC Current
● Accuracy: 0.5%
● Rated Current: 5A 1A AC (via CTs)
● Power Supply: 85~265V AC/DC
● Communication: RS485 (MODBUS-RTU)
● Analog Output: 4~20mA DC
● Standard&Certificate: CE Certificates- 75*75mm Panel Three-phase AC Digital Ammeter AMC72L-AI3● Measurement: 3-phase AC Current
● Accuracy: 0.5%
● Rated Current: 3x5A AC or 3x1A AC (via CTs)
● Power Supply: 85~265V AC/DC
● Communication: RS485 (MODBUS-RTU)
● Alarm Output: Low&High&Unbalance Alarm
● Analog Output: 4~20mA DC
● DI/DO Function: 2-channel DI&2-channel DO
● Standard&Certificate: CE Certificates - 75*75mm Panel Three-phase AC Digital Voltmeter AMC72L-AV3● Measurement: 3-phase AC Voltage
● Accuracy: 0.5%
● Rated Voltage: 400V or 660V AC L-L (direct connect); 100V AC L-L (via PTs)
● Power Supply: 85~265V AC/DC
● Communication: RS485 (MODBUS-RTU)
● Alarm Output: Low&High&Unbalace Alarm
● Analog Output: 4~20mA DC
● DI/DO Function: 2-channel DI&2-channel DO
● Standard&Certificate: CE Certificates - 75*75mm Panel Digital DC Voltmeter AMC72L-DV● Measurement: 1-circuit DC Voltage
● Accuracy: 0.5%
● Rated Current: 0~10V DC (via Transducer); 300V or 1000V DC (direct connect)
● Power Supply: 85~265V AC/DC
● Communication: RS485 (MODBUS-RTU)
● Alarm Output: Low&High Current Alarm
● Analog Output: 4~20mA DC
● DI/DO Function: 2-channel DI&2-channel DO
● Standard&Certificate: CE Certificates
● Standard&Certificate: CE Certificates
