Power Monitoring System

Application

Power Monitoring System38.png




Structure

Power Monitoring System52.png




Main Functions



1) Remote Measuring, Signal

Power Monitoring System101.png





2) Report



Power Monitoring System118.png





3) Curve



Power Monitoring System133.png





4) Fault recorder



Power Monitoring System159.png





5) Harmonic Monitoring



Power Monitoring System189.png





6) Web/APP

Power Monitoring System206.png

Power Monitoring System211.png

Power Monitoring System216.png





Product Selection


Power Monitoring System236.png

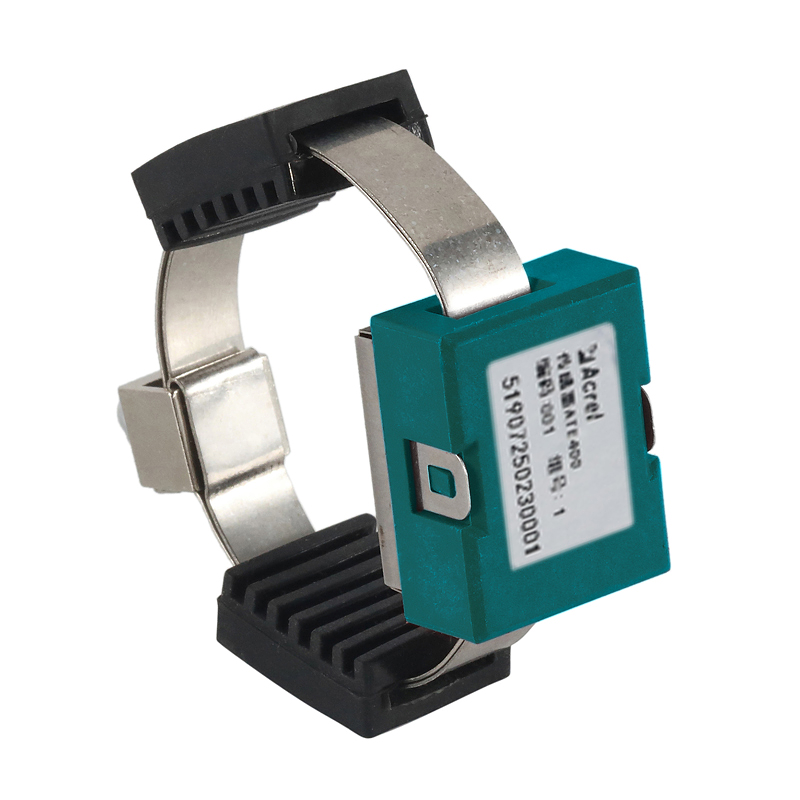

1) ATE400

● Small size

● Wireless transmit;

● Wireless transmission distance, 150 meters;

● Fase sampling frequency,15s;

● CT-powered, more than 5A starting current;

● Widely temperature measuring range, -40℃~125℃.

Power Monitoring System455.png

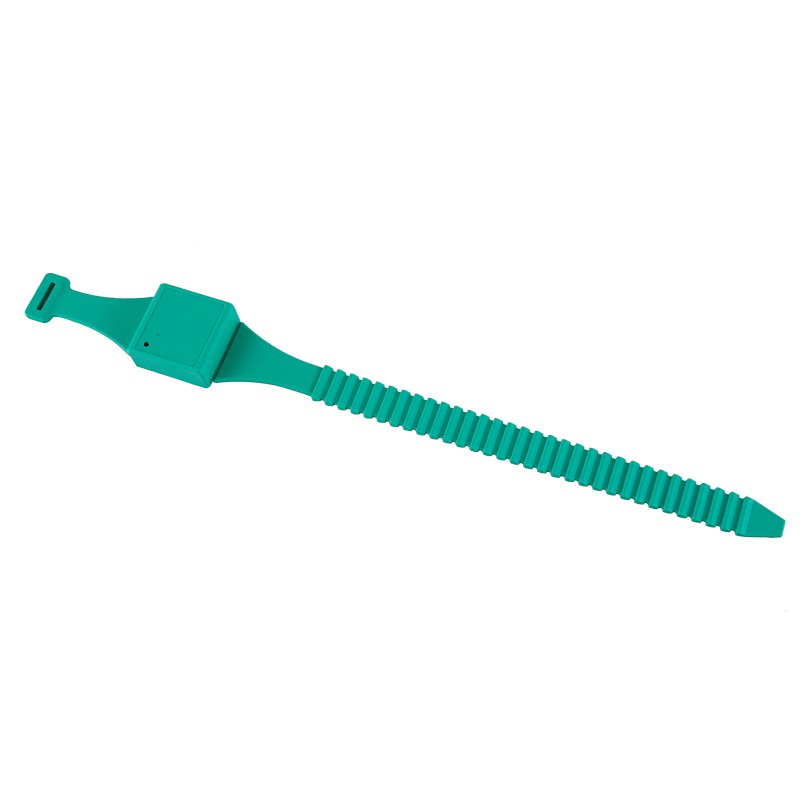

2) ATE200

● Wireless transmit;

● Wireless transmission distance, 150 meters;

● Fase sampling frequency,25s;

● Battery -powered,more than 5 years;

● Widely temperature measuring range, -40℃~125℃.

Power Monitoring System654.png

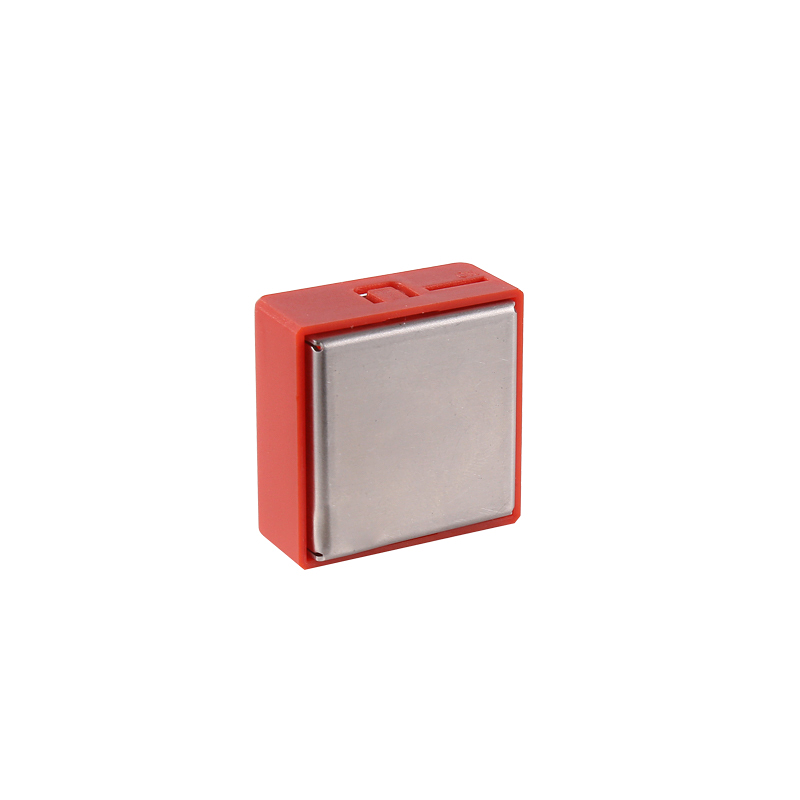

3)ATE100 wireless temperature sensor

● Wireless transmit,2.4GHz;

● Wireless transmission distance, 10 meters;
● Fast sampling frequency, 25s;
● Battery -powered, more than 5 years;
● Widely temperature measuring range, -40℃~+125℃.

Power Monitoring System961.png

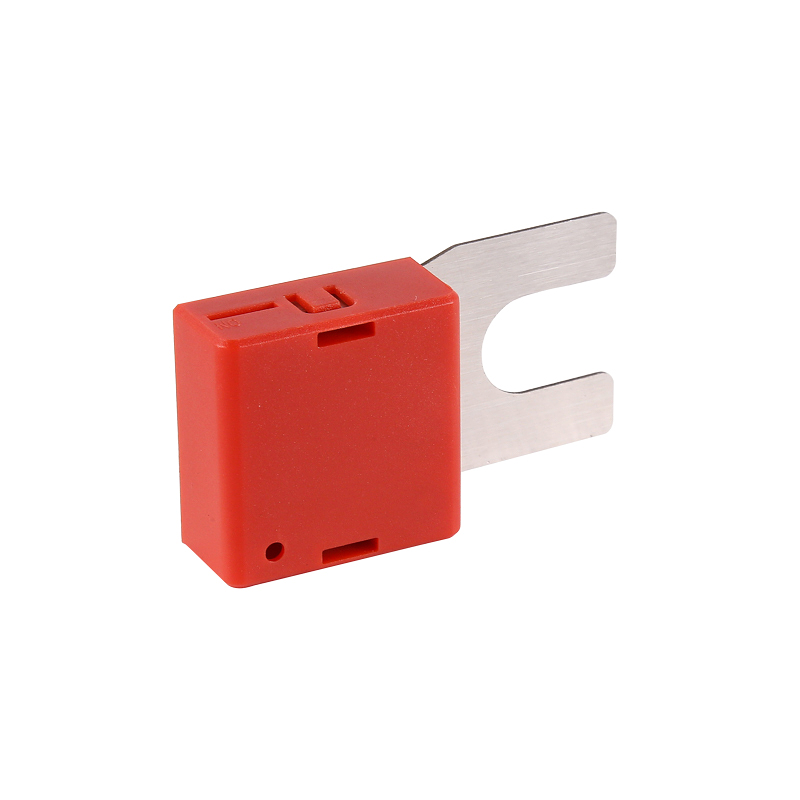

4) ATE100M

● Wireless transmit

● Wireless transmission distance, 150 meters;
● Fast sampling frequency, 25s;
● Battery -powered, more than 5 years;
● Widely temperature measuring range, -40℃~+125℃.


Power Monitoring System1163.png

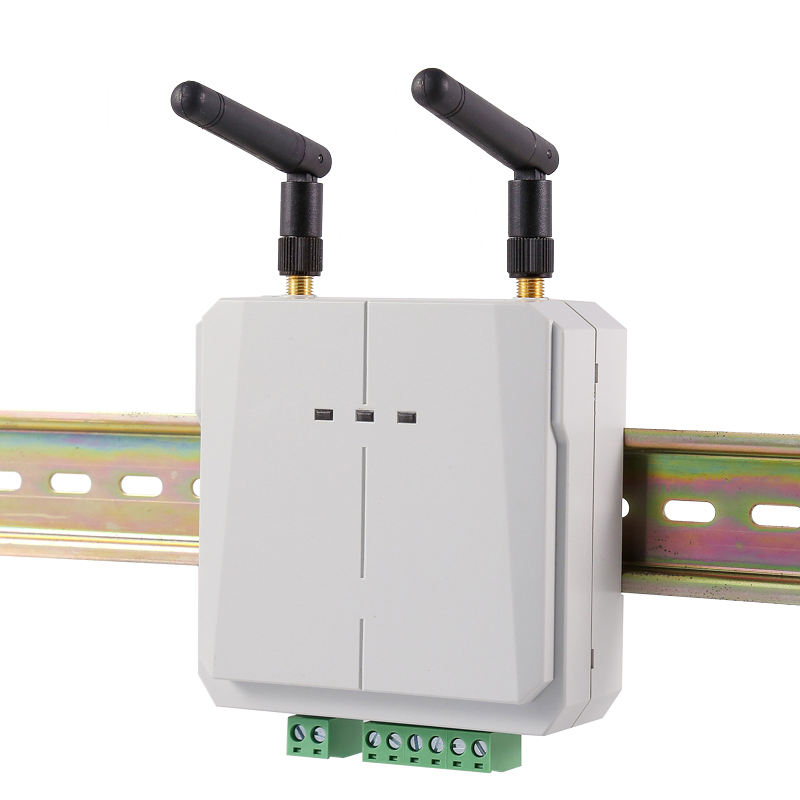

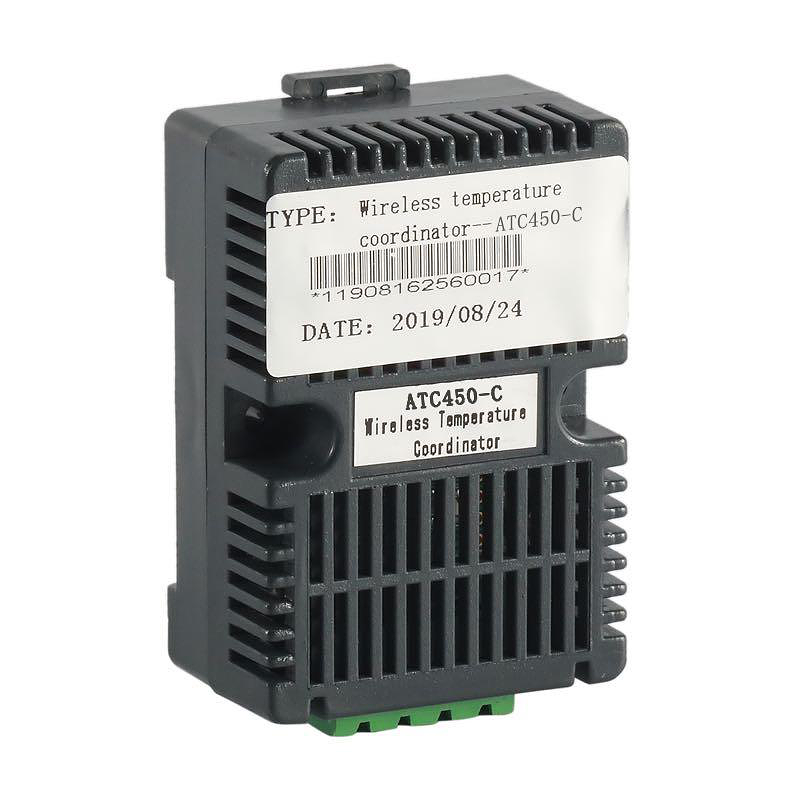

5) ATC450-C

● Wireless temperature measurement;
● Measuring 60 points;
● 1 RS485 serial communication, Modbus-RTU;
● Power supply adapt with DC24V.

Power Monitoring System1315.png

6) ATC600-C

● Wireless temperature measurement;
● Measuring 240 points;
● 1 RS485 serial communication, Modbus-RTU;

● 2 alarm relays

● Power supply adapt with AC/DC220V, AC/DC110V.

Power Monitoring System1500.png

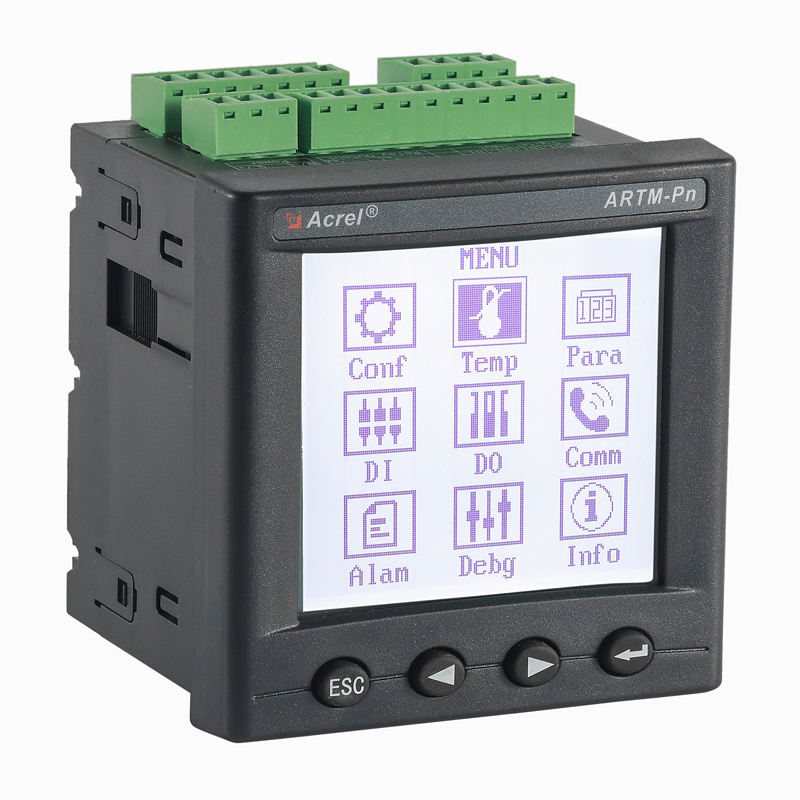

7) ARTM-Pn wireless temperature measuring equipment

● Wireless temperature measurement, maximum measuring 60 points;

● 4 digital inputs;
● 2 alarm relays;
● LCD display;
● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;
● 1 RS485 serial communication, Modbus-RTU.

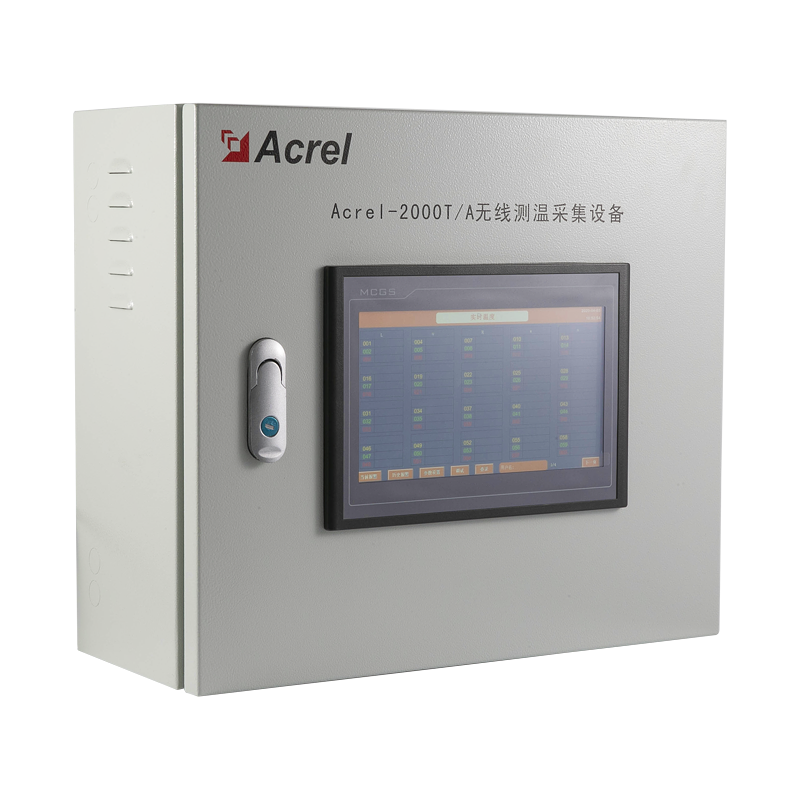

8) Acrel-2000T/A

● Wireless temperature measurement, 240 points;

● Power supply adapt with AC220V, DC220V, DC110V, AC110V;

● Temperature Curve;

● High temperature alarm, buzzer;

● 1 RS485 serial communication, Modbus-RTU;

● 1 Ethernet communication.
